Absence of split and join behavior on one element

Revision date:

Positive samples

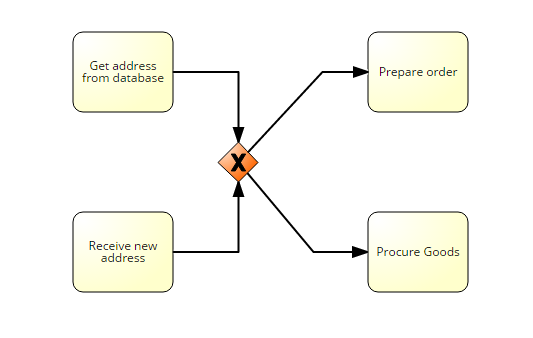

Negative samples


The strict separation of branched and merging gateways should be observed, since it leads to better transparency and clarity in the process.

In case a sequence flow is merged and then immediately branched again, separate gateways need to be modeled for both actions. A gateway should not have a convergent and merging function at the same time.
